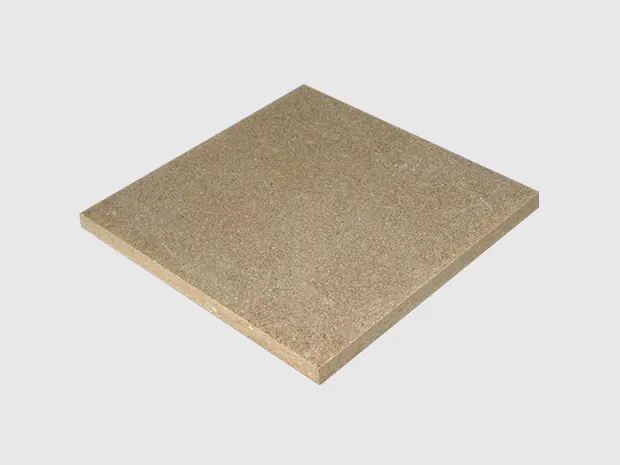

Fireproof door core vermiculite board is manufactured by hot or cold pressing expanded vermiculite with a specific amount of adhesive. This process yields high strength and toughness. The board also features thermal insulation, heat resistance, fireproofing, and asbestos-free properties. When heated to 1200°C, it does not emit gases harmful to human health and achieves Class A combustion performance. This product is suitable for fire door cores, fireplace linings, and wall materials.
Fireproof Door Core Vermiculite Board represents a new building material still in its infancy in China. The country primarily exports vermiculite raw materials, with finished products rarely utilized domestically. However, domestic market demand has gradually increased in recent years. Developed nations like the United States, United Kingdom, and France have widely adopted this material since the 1980s.
Characteristics of fire door core vermiculite boards: non-combustible, non-melting, and high-temperature resistant. As expanded vermiculite is the primary raw material, this inorganic material contains no carbon and does not burn. Its melting point ranges from 1370 to 1400°C, with a maximum service temperature of 1200°C, alongside enduring thermal insulation properties.
Fire-resistant vermiculite core panels are manufactured by uniformly blending 800–1000°C expanded vermiculite, inorganic additives, and binders in specific proportions. The mixture is molded, pressed into shape, undergoes low-temperature curing, and is dried at high temperatures. As a porous material, vermiculite panels contain billions of micrometer-sized pores (one-seventieth the diameter of a human hair) per cubic centimeter. Their exceptional porosity ensures stable thermal conductivity even in high-temperature environments, making them the material of choice for fireproofing, insulation, thermal barrier, and soundproofing applications.
Technical Specifications for Fire Door Core Vermiculite Board:
Product Name
Fire Door Core Vermiculite Board
Fire Door Core Vermiculite Board
Fire Door Core Vermiculite Board
Testing Conditions
Thickness（mm）
20±0.5
40±0.5
60±0.5
/
Density（kg/cm3）
800±50
600±50
500±50
/
Fire Resistance Temperature (℃)
1150~1250
1100~1200
1100~1200
/
Fire Rating
A1
A1
A1
/
Heat-Induced Permanent Linear Change
≤2
≤2
≤2
1100℃×12h
Compressive Strength at Room Temperature（MPa）
4.9~5.9
3.73~4.73
3.76 ~4.76
Compression 10%
Thermal conductivity W/(m·K)
0.120±0.003
0.107±0.003
0.100±0.003
Hot side 200℃
0.140±0.003
0.127±0.003
0.120±0.003
Hot side 400℃
0.160±0.003
0.147±0.003
0.140±0.003
Hot side 600℃
0.180±0.003
0.167±0.003
0.160±0.003
Hot side 800℃
Loss on Ignition（%）
<2
<3
<3
1050℃
Color
Golden Yellow/Silver White
Golden Yellow/Silver White
Golden Yellow/Silver White
/
The fireproof door vermiculite produced by Chenxing Industry is made of excellent Xinjiang asbestos free vermiculite, non-toxic, smoke-free, green and environmentally friendly. The inorganic material does not contain carbon and sulfur elements, and does not produce air pollutants such as CO2 and SO2 that affect the atmosphere, nor does it pose a threat to human health.
|
Machinable Specification Range |
Available materials |
|
Density：400-1000KG/m³ Thickness：10-60MM Length and Width：Can be cut to various dimensions within 1200*2000MM range according to customer requirements。 |
Third-party authoritative test reports (SGS, etc.) available, including: |
